Omschrijving
ELEKIT TU-8550
TUBE PREAMP DIY KIT WITH PHONO AMP

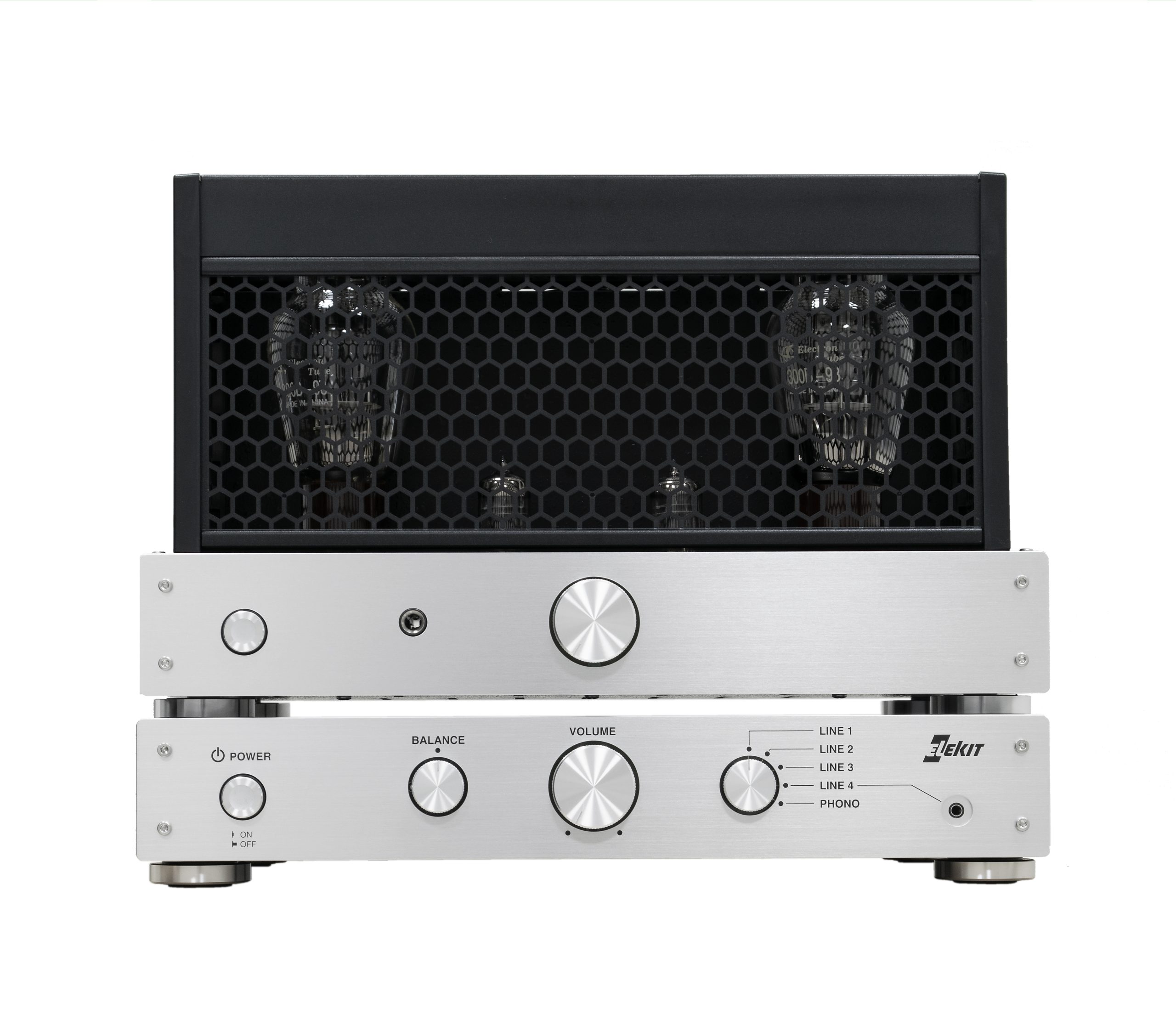

Newest addition to Elekit family - preamplifier kit with phono amp, in chassis with size matching to TU-8900 amp. Among other, it features a CR type RIAA equalizer circuit for straight-forward and smooth sound quality, quadral volume pot, four input lines and two outputs. And as usuall, highest sound quality provided with six tubes (NOT INCLUDED).

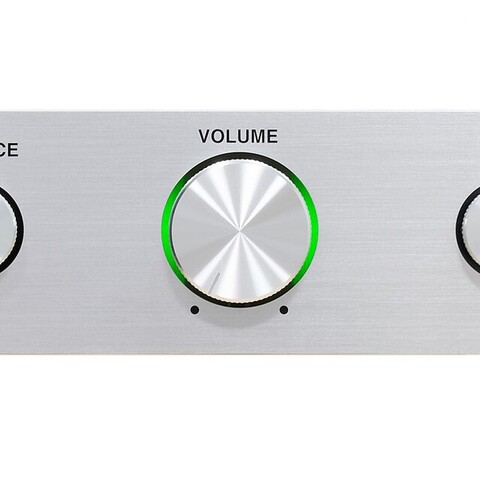

Quadral volume for the flat amp diminishes residual noise upon low volume
High gain is required for a preamp when the level of a sound source is low or when the input sensivity of a power amp is low. On the other hand, high gain of a preamp brings about a problem of residual noise at a small sound volume. VOLUME-GAIN locking system, where the gain decreases as the sound volume is lowered down (approx. 1.4 times) and increases when a volume is highered (approx. 7 times) puts this residual noise problem to rest and diminishes the noise at low level even when the sound volume is low.

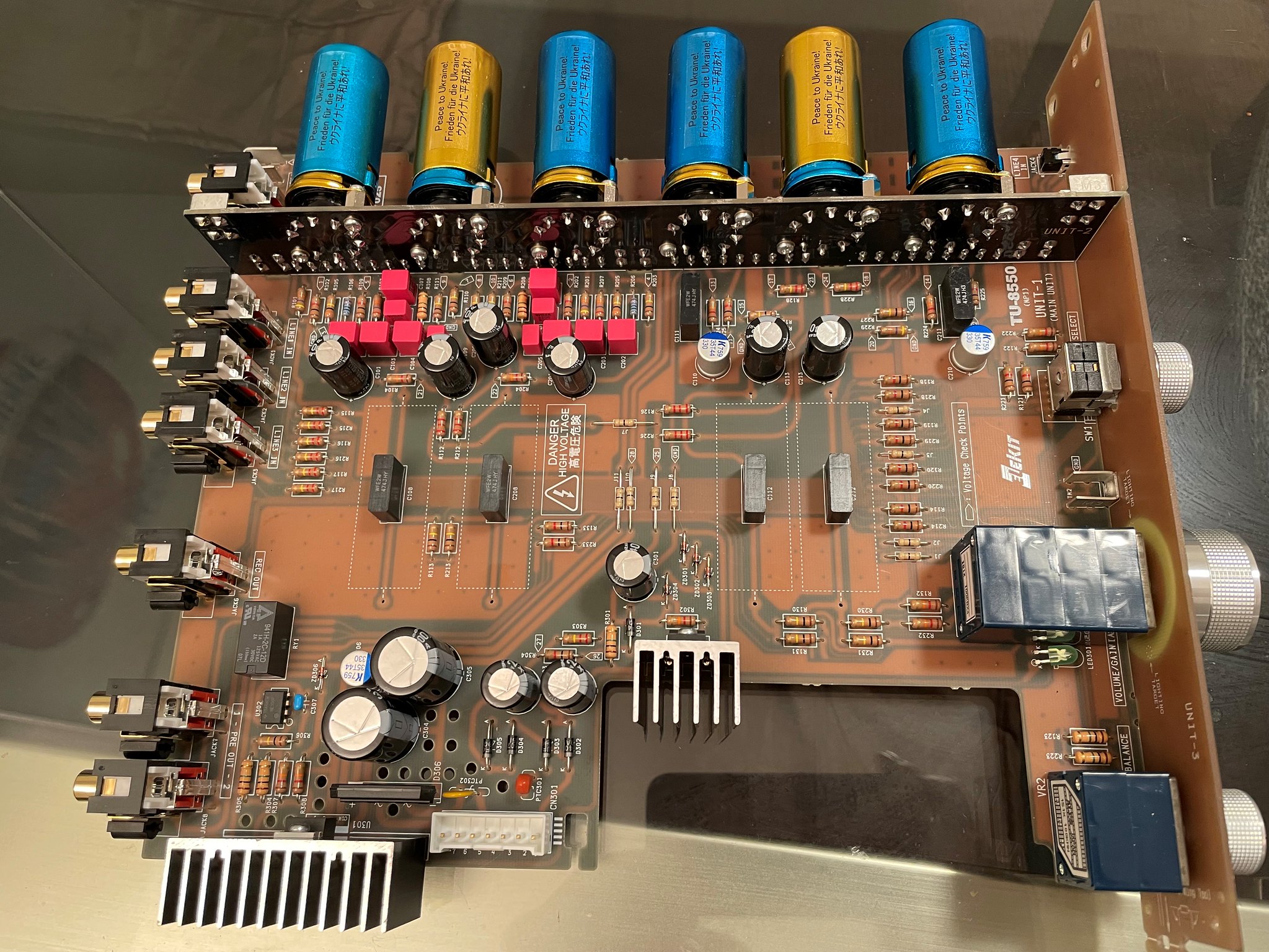

Thorough elimination of hum noise

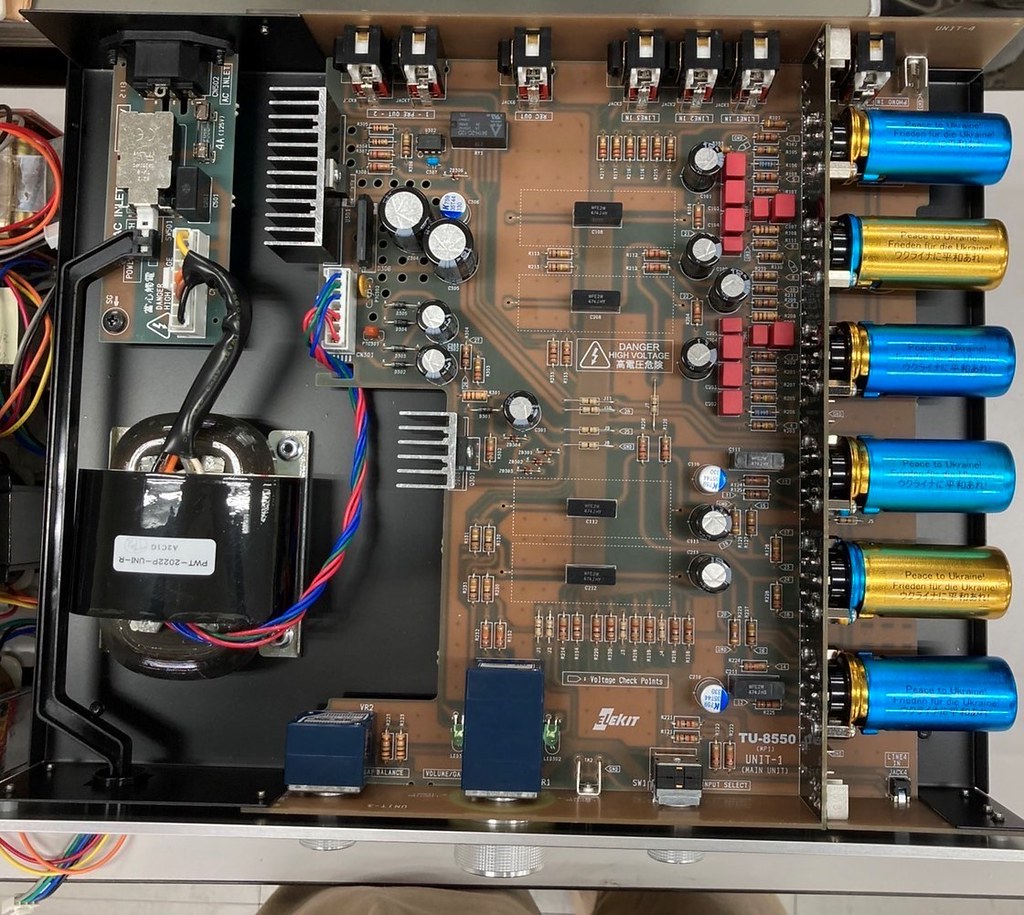

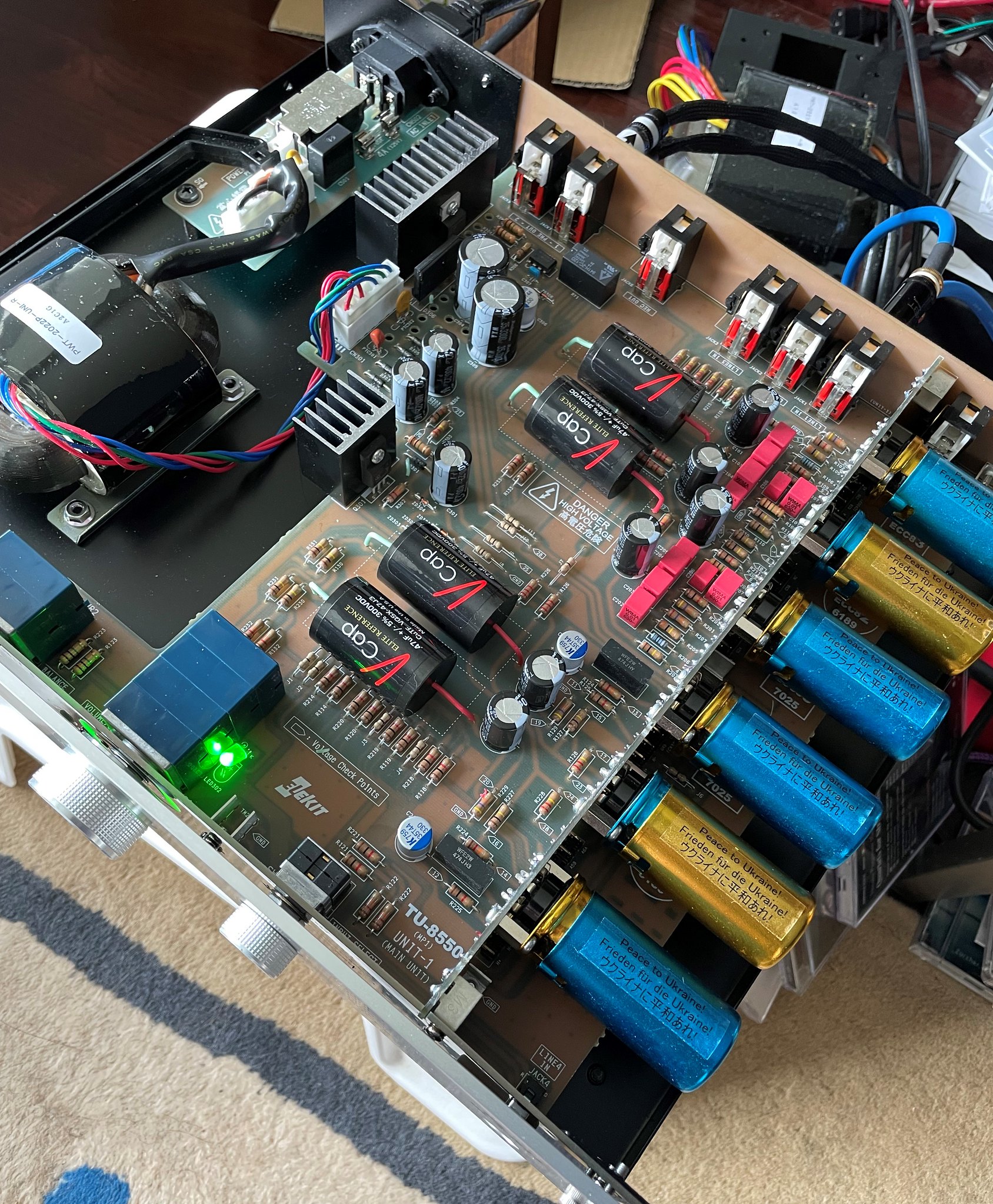

In the power sections, for rectification, fast-recovery diodes are adopted for B-power, and a slow-start by MOSFET is adopted for stabilized power supply. In addition, for A-power (heater power), all tubes are DC-powered by a LDO regulator to eliminate hum noise thoroughly.
REC-OUT built-in
Signals selected by the selector are output from REC-OUT which users may use when connecting TU-8550 to a recording device or using the signals output from the equalizer amp of TU-8550 in other amplifier device.
TECHNICAL SPECIFICATION
| TUBES | ECC83 (12AX7) x 4 + ECC82 (12AU7) (NOT INCLUDED) |

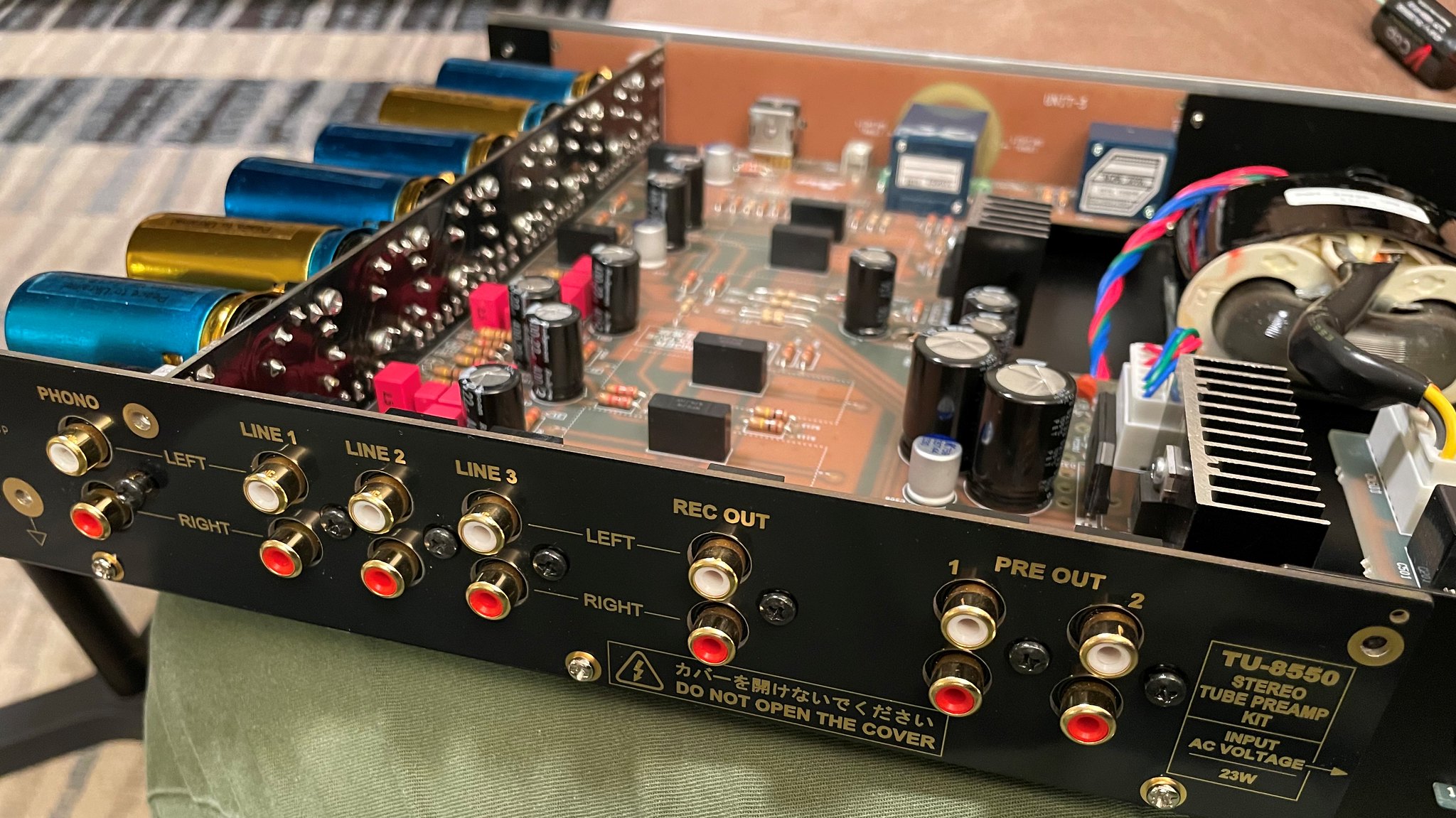

| INPUT TERMINALS | RCA Jack 4 lines (LINE1 - 3 + PHONO) 3,5 mm stereo jack 1 line at front |
| OUTPUT TERMINALS | RCA Jack 2 lines (parallel outpu) REC OUT RCA Jack 1 line |
| POWER VOLTAGE | AC 100V 50/60Hz, IEC Standard 3P inlet Selected from 100V, 115V, 200V and 230V upon assembly |
| POWER CONSUMPTION | 23 W |
| DIMENSIONS | W 352 mm x H 66 mm x D 298 mm (exc. projections) |
| WEIGHT | Approx. 3,9 kg (assembled, exc. wires) |
| FLAT AMP STAGE | |
| - MAX OUTPUT VOLTAGE | 20V rms (1 kHz) |
| - MAX GAIN | Approx. 17 dB (~7 times) |
| - FREQUENCY RESPONSE | 5 Hz - 200 kHz (-3 dB) |
| - RESIDUAL NOISE (IHF-A) | 15 μV (sound level max) 6,5 μV (sound level mid) |
| - S/N RATIO (IHF-A) | 130 dB (sound level mid) 126 dB (sound level max) |
| EQUALIZER AMP STAGE | |
| - RIAA EQUALIZATION | +/- 0,5 dB tolerance (20 Hz - 20 kHz) |
| - INPUT RESISTANCE | 47 kΩ (MM cartridge) |
| - GAIN (1 kHz) | 29 dB |
| - SN RATIO (IHF-A) | 112 dB |
| - MAX. OUTPUT VOLTAGE | 20 V rms (1 kHz) |
