Speaker matching transformer Hammond 117F8

Description

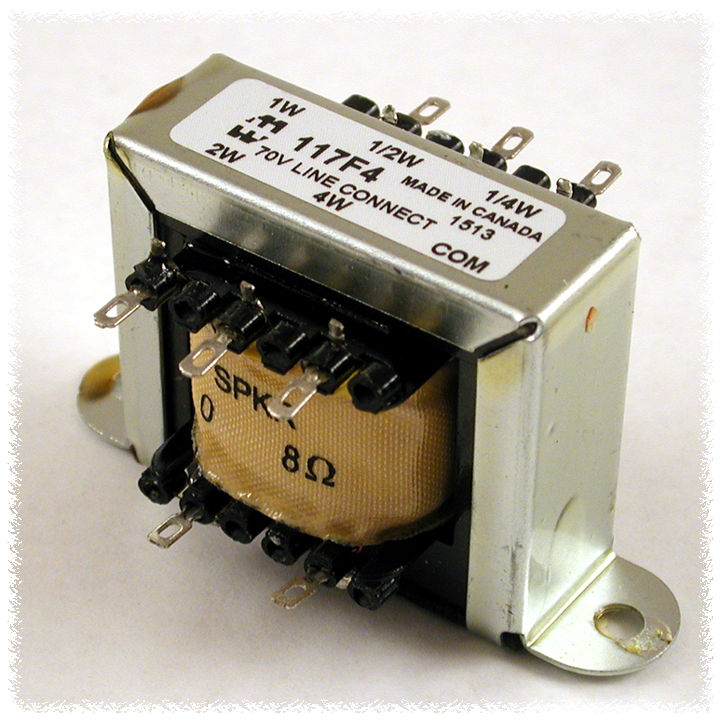

Hammond 117F8 line matching audio transformer.

Technical data:

Couple 8 ohm speakers to 70 volt line outputs of amplifiers.

5 power tap levels available.

Primary taps marked in watts (no calculation necessary), to match speaker power.

Frequency response 100 Hz. to 9 Khz. (1 db. reference @1 Khz.)

Insertion loss less than 2 db.

Distortion is less than 1.25% @ 100 Hz. at maximum power.

Horizontal, channel bracket, 2-hole (.187" dia.) mounting.

All models have solder lugs, also suitable for slip on jumper connections.

Total power requirements of speakers should not exceed the rated power of each transformer or rated power of the amplifier.
