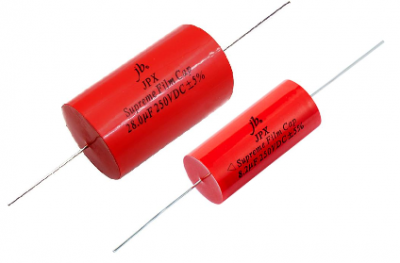

Supreme Hi-End capacitor JPX 630 Volt
back to categoryfrom € 1.55
Contact us for the prices of this product.
from € 1.28
excl. VAT
Contact us for the prices of this product.
Description
JPX - Supreme Metallized Polypropylene Film Capacitors – The best in MKP capacitor
- Quick transient design
- High Precise Capacitance ±3%, ±5%
- Very Low Dielectric absorption factor
- Very Low Dissipation factor
- Very Low ESR
- Very Low Inductance
- Excellent handling of high current audio pulses
Passive flammability | GB10191-88 IEC384-16 |
---|---|
Operating temperature | -55℃~+85℃ |
Capacitance range | 0.1~100uF |
Capacitance tolerance | ±3%(E)、±5%(J) 1KHz |
Rated voltage | 250V、400V、630V.DC |
Withstand voltage | 1.6VR 5S |
Dissipation factor | ≤0.0005 1KHz |
Insulate the electric resistance | CR≤0.33μF, I.R≥15,000MΩ CR>0.33μF, I.R≥5,000S |
Leads Diameter | 0.8、1.0 Tinned Copper Wire |
